| Model |
DMM – 1.5 TON ( ECO) |
| Type |

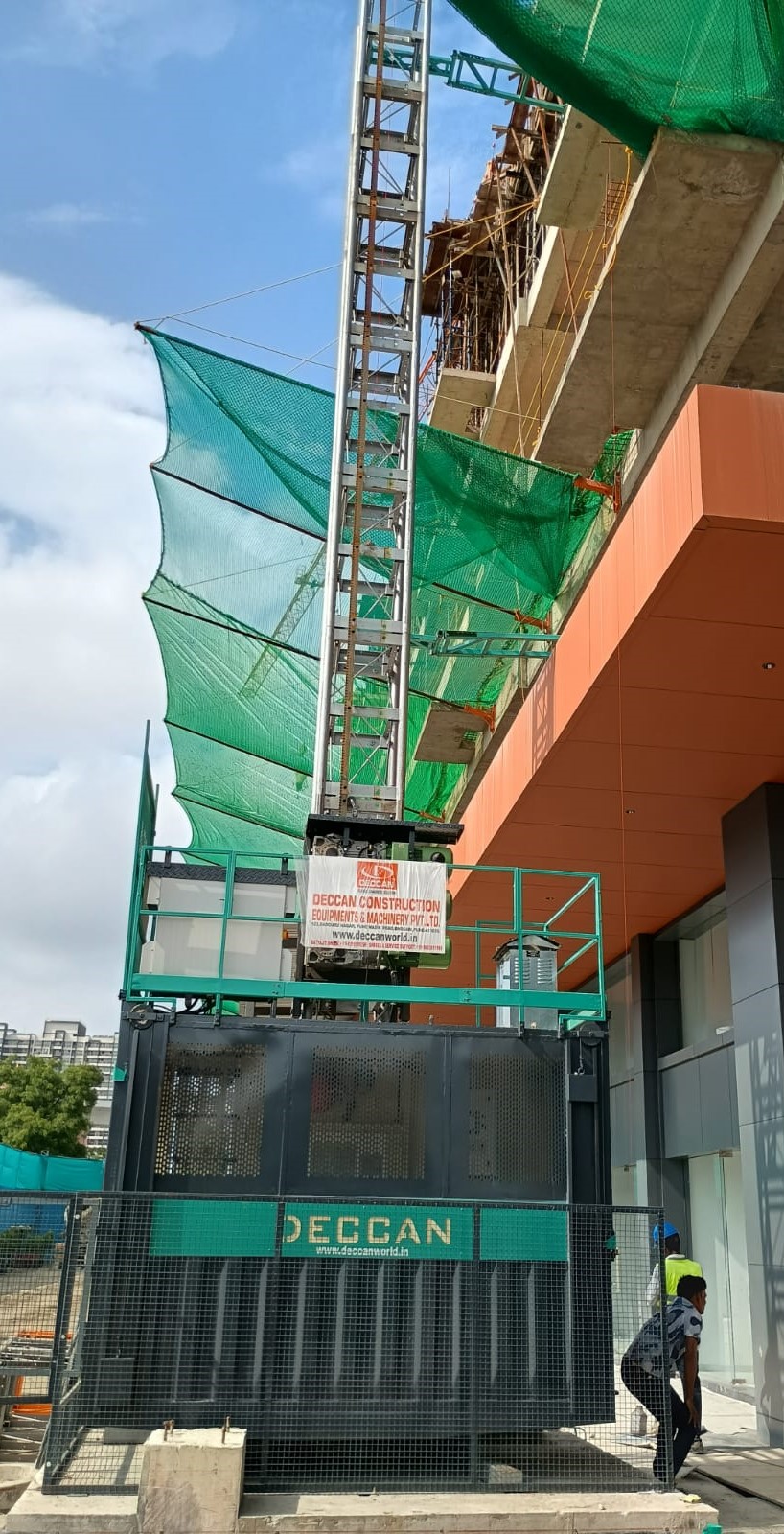

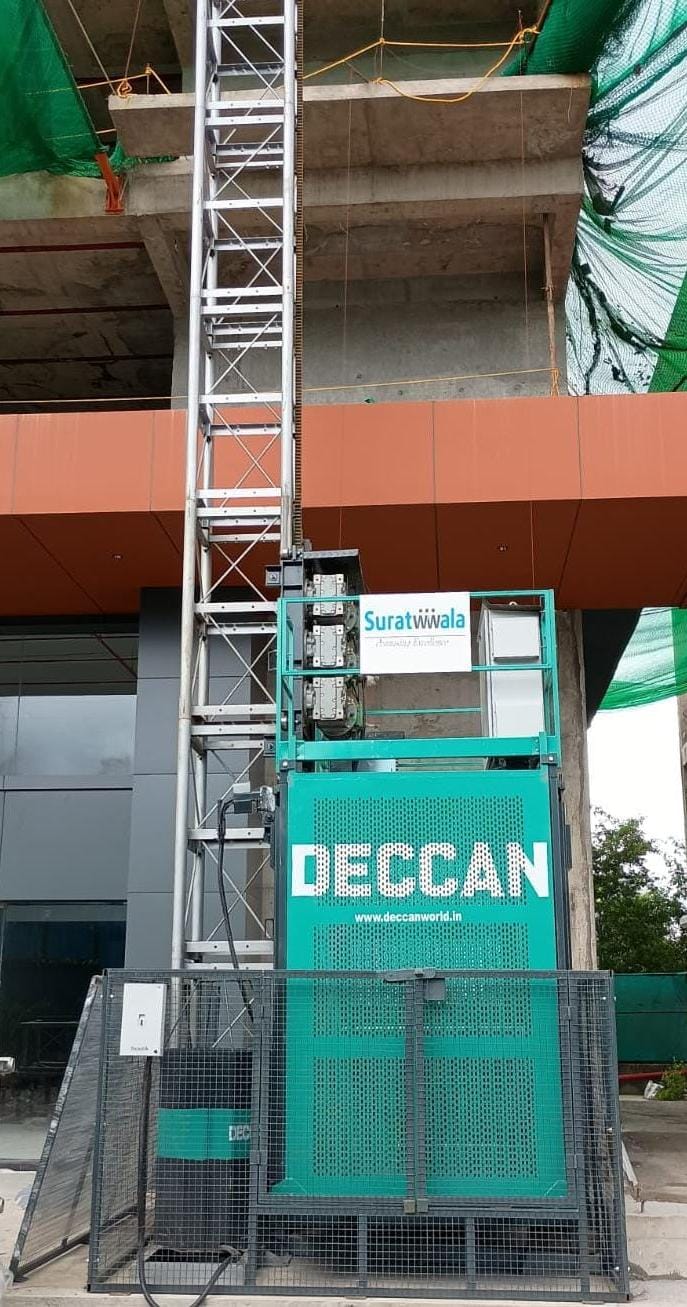

Rack & Pinion Passenger & Material Tower Hoist |
| Load Carrying Capacit |
1500kg. Gross Load (Net 1400kg.) |
| Speed |
30 m/min |
| Rack & Pinion Size |
5 Module |
| Mast Height |
63 Mtrs |
| Size (mm) |
Square – 450 X 450 X 1508 |
| MAST Section (mm) |
M.S. Round Pipe Dia. 48 X 4 mm thick |
| Wall Tie Interval |
6 Mtrs. |
Note : Pipe Thk. Should be changes after 200 Mtrs. Height. As per International
Standard
| Type |
3 Phase AC Brake Motor |
| Power |
9.5Kw. X 2 Nos. |
| Degree Of Protection |
IP 55 |
| Rated Voltage |
415V +/- 5% |
| VFD |
22 Kw. |
| Material |
IS 2062 High Tensile MS CR sheet |
| Structure Size |
Main vertical members made CR sheet metal with CNC bending process, which high
amount of stress during working.
Horizontal supports made form Ms sheet metal channels provide strength to
structure.
CNC laser cut Ms stiffener provide robustness against vibration.
|
| Weight |
1046 Kg. (Approx.) |
| Support with mast section |
4 nos. Swivel type Twin guide rollers & Rake roller with bearings to carrying
high
load and jerk free smooth travel operation.
Also provide 04 nos. single type side guide rollers with bearing for prevent side
shifting of cage & carriage.
|
| HIGH LIGHTED FEATURES : |
Cage units is sub part of cage structure and Safety device are directly mounted
on
carriage unit frame.
- 04 nos. safety hook fixed with carriage unit.
- Special design load cell fixed with carriage.
- Powder coated finish which increases shell life of structure and high end
protection against rust.
|
| Material |
High Tensile MS steel plate structure. |
| Structure Size |
8mm Thk. Single formed plate structure.
Horizontal supports made form MS flats to provide strength to structure.
|
| Weight |
445 Kg. (with geared motor) |
| Support with mast section |
6 nos. guide rollers with bearings to carrying high load and jerk free smooth
travel operation. 02 nos. Rack roller for better ailments. |
| HIGH LIGHTED FEATURES : |
Drive units directly mounted on carriage unit frame and its are sub assembly.
Powder coated finish which increases shell life of structure and high-end
protection
against rust.
|
| Material |
High Tensile Structural Steel |
| Size |
Square 450 X 450 mm, 1508
mm,Height
|
| Weight |
68 Kg. (With Rack) |
| Main Section Size |
IS 2062 Round pipe dia. 48 mm X
4 mm Thik
|
| Side Bracing |
Metal Forming channel & Angle |
| Diagonal Cross Bracing |
Dia. 16 mm Bright Bar |
| Mast Joining Bolt |
High Tensile Bolt, Nut & Washers M20 X 220 Lg. |
SIZE : 650 X 650 X 1508
NOTE : Mast fabricated through fixture, hence there’s Uniformity in mast quality
and dimension. Silver coated mast finish which increases shell life of structure and high
end protection against rust.
Size (Inside) : 2.5 (L) x 1.4 (W) x 2.1(H) mtr.
- Rigged & heavy MS base with 3mm Thk. chequered plate which is made form sheet metal
bend
channels
- Sheet metal side walls & ramp doors supported with sheet metal channels. Half
vertical sliding type entry door with max. opening in entrance. Half vertical sliding
&
half ramp type Exit door with side railing which create safe passage between cage &
building.
- Species Cage for 9 to 10 passengers or 1.5 Ton Material load.
- Special design springs provide to reduce effort to open & close ramp door.
- Powder coated finish which increases shell life of structure and high end protection
against rust.
- Open design safety device is a mechanical unit used to protect against accidental
free-fall.
- European design safety device is a mechanical unit used to protect against
accidental
free-fall.
- Squire pipe adjustable type tie design to help maintain safe distance form max.
project
area of building structure.
- Extra ling Eye bolts stud can help remove mast tower plumb with individual
adjustment
future.
- Enclosure side walls are fabricated from MS tubes structure & covered with wire mash
- Door limit provide to ensure door is properly closed.
- Powder coated finish which increases shell life of structure and high end
protection
against rust.
- Electrical operated erection jib provided for mast & wall tie lifting and
installation
purpose during height erection of
mast tower.
- Powder coated Mast finish finish which increases shell life of structure and high
end
protection against rust.
Gear Box Type : Heli-Bevel
Gear Box : Bonfiglioli / Nord or European Design Heli-Bevel Geared Motor with Electro
magnetics brake with maximum power efficiency which reduce operating power of machine.
- User friendly 3 button control station.
- Use for Easy and safe operating during erection, Drop test mode.
- We are using Schneider, Finder etc primum and reliable brand electrical contactors,
relay, MCB etc. are used to avoid damage electrical motor. Thus reducing frequency of
electrical breakdowns.
- We are using Schneider / Equivalent premium brand VFD, which delivers trouble free
performance.
- Colour HMI which display real time status of machine and indicate error massages
with
proper images.
- HMI & push button based operation.
- Fully automatic & Manual mode of operation.
- Encoder to be provided for accurate floor selection during auto mode, it also show
us
real time floor position of machine on HMI screen.
- Provide all required safety elements.
- IP 55 degree of potation.
- Clean and easy panel wiring with proper markings on cables for batter traceability
which
reduce breakdown time.
| Safety Brake |
European standard safety device to protect against accidental free-fall. |
| Safety device limit |
Safety device actuating detector |
| Safety door interlock |
Solenoid safety switch interlock for entry door to ensure door open only at
ground. |
| Bottom limit |
To stop machine at bottom |
| Top limit |
To stop machine at top |
| Entry door limit |
To ensure door is properly closed. |
| Exit door limit |
To ensure door is properly closed. |
| Trap door limit |
To ensure trap door at cage top is closed |
| Rack searching limit |
To ensure rack is available on mast |
| Cable Jam limit |
To protect power cable if it struct with structure and jam. Which provides best
in
class electrical safety.
|
| Final Limit |
High end protection for failure against top or bottom limit |
